The Evolution of Flight Control Systems: From Analog to Digital Fly-by-Wire

From the earliest days of aviation, the dream of flight has been intertwined with the challenge of control. Initially, rudimentary mechanical linkages connected the pilot’s inputs directly to the aircraft’s control surfaces. This analog era, while pioneering, presented inherent limitations in terms of responsiveness, stability, and the sheer physical effort required to maneuver increasingly complex machines. As aircraft grew in size, speed, and sophistication, a fundamental shift was needed – one that would leverage the burgeoning power of computing to redefine how humans interact with their flying machines. This pivotal transformation, from cumbersome analog systems to the highly refined digital fly-by-wire, represents a monumental leap in aerospace engineering. It’s a story of innovation driven by the relentless pursuit of safety, efficiency, and performance, profoundly impacting flight control systems and setting new paradigms for aviation software development. This article delves into this remarkable evolution, exploring how advancements in flight software and embedded software have not only revolutionized aircraft control but also reshaped the very landscape of modern aeronautics.

Talk with Our Team

Explore our expertise and discover how we can help your projects achieve new heights.

Get Started

The Analog Age: Mechanics, Cables, and Limitations

In the dawn of aviation, flight control was a direct, mechanical affair. Pilots manipulated joysticks and rudder pedals, which were connected via a labyrinth of cables, pulleys, and pushrods to the ailerons, elevators, and rudder. This “fly-by-cables” system, while remarkably effective for its time, had several inherent drawbacks:

• Weight and Complexity: The sheer volume of mechanical components added significant weight and complexity to the aircraft structure.
• Maintenance: Maintaining and inspecting these intricate mechanical linkages was a labor-intensive and critical task, with any slack or damage directly impacting control responsiveness.
• Limited Augmentation: Analog systems offered minimal capability for flight augmentation. Features like stability augmentation or automatic trim were difficult, if not impossible, to implement effectively.
• Pilot Workload: Larger and faster aircraft demanded greater physical effort from pilots to move control surfaces, especially at higher speeds, leading to increased fatigue.
• Design Constraints: The physical routing of cables imposed constraints on aircraft design, particularly concerning control surface placement and overall aerodynamic efficiency.

The mechanical nature also meant that control response was inherently tied to the physical properties of the system – elasticity of cables, friction in pulleys, and the aerodynamic forces on the control surfaces. For early, slower aircraft, these limitations were manageable. However, as aviation progressed into the jet age, with supersonic speeds and designs like the Concorde and early military jets pushing aerodynamic boundaries, the need for more precise, responsive, and robust control became paramount. The mechanical limitations simply could not keep pace with the demands of advanced aircraft.

The Transition to Hydro-Mechanical Systems: A Step Forward

To address the increasing forces required to move control surfaces on larger and faster aircraft, hydraulic systems were introduced. Instead of direct mechanical linkage, pilot inputs would activate hydraulic valves, which in turn powered actuators to move the control surfaces. This was a significant improvement:

• Reduced Pilot Effort: Hydraulic assistance drastically reduced the physical effort required from the pilot.
• Increased Control Authority: Larger control surfaces could be moved with precision, even against significant aerodynamic loads.
• Smoother Control: Hydraulic systems generally provided a smoother and more consistent control feel.

While a vast improvement, these hydro-mechanical systems still retained an analog link from the pilot to the hydraulic valves. They were still susceptible to single-point failures in the mechanical linkage or hydraulic lines, and the ability to integrate advanced flight control laws was limited. This hybrid approach served as a bridge, highlighting the need for an even more radical departure from purely mechanical control.

The Digital Revolution: Enter Fly-by-Wire

The true revolution in flight control began with the advent of digital electronics and the concept of “fly-by-wire” (FBW). In an FBW system, the traditional mechanical linkages are replaced by electrical wires and, crucially, sophisticated computers. Pilot inputs are converted into electrical signals, which are then transmitted to a flight control computer (FCC). The FCC, running complex flight software, interprets these signals, calculates the necessary control surface deflections, and sends commands to hydraulic actuators.

The first production aircraft to fully employ a digital fly-by-wire system was the Airbus A320, marking a turning point in commercial aviation. However, the concept had been explored and implemented in military aircraft much earlier, notably with the F-16 Fighting Falcon, which was inherently unstable and required FBW to be flown at all. This inherent instability, designed to enhance maneuverability, would have been impossible to manage with analog or hydro-mechanical systems, underscoring the transformative power of FBW.

Key Components of a Digital Fly-by-Wire System:

1. Pilot Input Devices: These convert physical pilot actions (e.g., sidestick, rudder pedals) into digital electrical signals.
2. Flight Control Computers (FCCs): These are the brains of the system. Multiple redundant FCCs (typically three or more, with different software versions in some cases for dissimilar redundancy) receive pilot inputs, sensor data (airspeed, altitude, attitude, etc.), and perform real-time calculations.
3. Data Buses: High-speed data buses (e.g., ARINC 429, MIL-STD-1553) transmit information between FCCs and other aircraft systems.
4. Actuators: These are typically hydraulic or electric devices that move the control surfaces based on commands from the FCCs.
5. Sensors: A vast array of sensors provides critical data to the FCCs, including air data probes (pitot-static systems), accelerometers, gyroscopes, and GPS receivers.

The Role of Flight Software and Embedded Software

The heart of any digital fly-by-wire system lies in its flight software and the underlying embedded software. These are not merely programs; they are highly complex, mission-critical applications that dictate every aspect of the aircraft’s behavior.

Flight Software: The Brains of the Operation

Flight software, often referred to as the flight control laws, is responsible for:

• Command Interpretation: Translating pilot inputs into desired aircraft responses (e.g., “climb at 1000 feet per minute”).
• Stability Augmentation: Continuously adjusting control surfaces to maintain stability, especially in inherently unstable aircraft designs.
• Envelope Protection: Preventing the aircraft from exceeding its aerodynamic limits (e.g., preventing stalls, overspeed, excessive G-forces). This is a significant safety feature that analog systems could not provide.
• Flight Mode Management: Handling different flight phases (takeoff, cruise, landing) and automatic functions like autothrottle, autopilot, and autoland.
• Failure Detection and Redundancy Management: Monitoring the health of the FBW system, detecting failures in sensors or computers, and seamlessly switching to redundant systems to maintain control. This is where the concept of “dissimilar redundancy” (using different hardware and software from multiple vendors) comes into play to mitigate common-mode failures.
• Performance Optimization: Calculating optimal flight paths and control settings for fuel efficiency and mission effectiveness.

The development of flight software is an extraordinarily rigorous process, involving extensive mathematical modeling, simulation, and real-world testing. Every line of code must be meticulously verified and validated, as even a minor error can have catastrophic consequences.

Embedded Software: The Foundation

Beneath the flight control laws, embedded software forms the fundamental layer upon which the FBW system operates. This includes:

• Operating Systems (RTOS): Real-Time Operating Systems (RTOS) are crucial for managing the timing and execution of flight software tasks, ensuring deterministic and predictable responses.
• Drivers and Firmware: Low-level software that interfaces directly with hardware components, such as sensors, actuators, and communication buses.
• Diagnostic and Self-Test Routines: Software built into the system to continuously monitor its own health and identify potential issues.
• Boot-up and Initialization Code: Software that ensures the system starts correctly and initializes all its components.

The embedded nature of this software means it is tightly integrated with the hardware, optimized for specific processors, and often constrained by memory and processing power limitations. Its reliability and efficiency are paramount.

Implications for Aviation Software Development

The shift to digital fly-by-wire has profoundly reshaped aviation software development, elevating it to one of the most critical and complex fields in engineering.

1. Unprecedented Safety and Reliability Requirements:

• Formal Methods: The industry increasingly relies on formal methods – mathematical techniques for specifying, developing, and verifying software – to prove the correctness of flight control software.

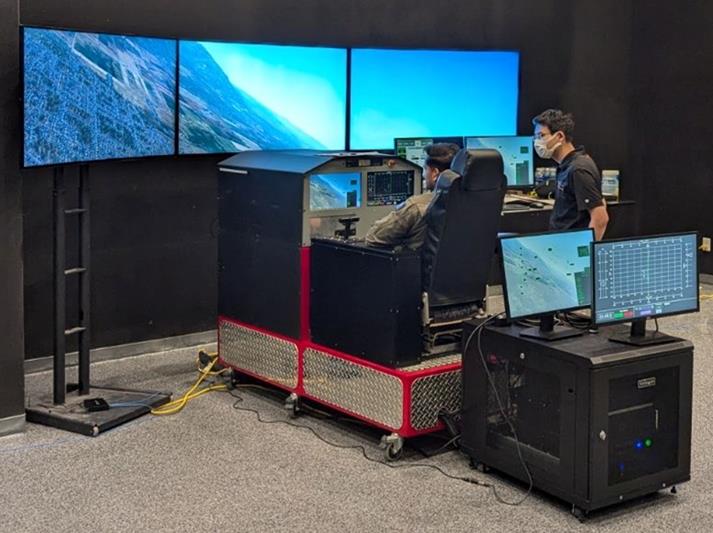

• Rigorous Testing: Extensive testing, including Hardware-in-the-Loop (HIL) simulations, Software-in-the-Loop (SIL) simulations, and exhaustive flight tests, is mandatory.
• Certification Standards: Strict certification standards, such as DO-178C (Software Considerations in Airborne Systems and Equipment Certification), govern the entire software development lifecycle, ensuring compliance with airworthiness regulations.

2. Complexity Management:

• Modular Design: Software is broken down into highly modular components to manage complexity and facilitate independent development and testing.
• Configuration Management: Strict version control and configuration management are essential to track changes and ensure traceability.
• Model-Based Design: The use of graphical modeling tools (e.g., Simulink/Stateflow) for design and code generation has become prevalent, improving productivity and reducing errors.

3. Cybersecurity Concerns:

• As aircraft become more connected and reliant on digital systems, cybersecurity has emerged as a critical concern. Protecting flight software from external threats and unauthorized access is now a primary focus in development.

4. Interdisciplinary Collaboration:

• Aviation software development demands close collaboration between software engineers, aerodynamicists, control engineers, human factors specialists, and pilots. Understanding the nuances of flight dynamics and pilot interaction is crucial for effective software design.

5. Obsolescence Management:

• The long operational life of aircraft (often decades) means that software and hardware components can become obsolete. Managing this obsolescence and ensuring long-term support for legacy systems is an ongoing challenge.

6. Agile Methodologies (with Caution):

• While traditional aerospace development has been highly waterfall-driven, there’s growing interest in adapting agile methodologies. However, the strict safety and certification requirements necessitate careful adaptation of agile principles to ensure compliance and traceability.

The Future of Flight Control: More Autonomous, More Integrated

The evolution of flight control systems is far from over. The trends point towards even greater autonomy, integration, and intelligence.

• More Electric Aircraft (MEA) / All-Electric Aircraft (AEA): The move towards electric actuators (fly-by-wire becomes “fly-by-light” or “power-by-wire”) will reduce the reliance on hydraulic systems, bringing further weight savings and simplified maintenance. This necessitates robust power management and advanced electric motor control software.
• Adaptive Flight Control: Future systems will be more adaptive, learning from real-time flight conditions and external factors (e.g., turbulence, icing) to optimize control responses.
• Autonomous Flight and Urban Air Mobility (UAM): The rise of autonomous cargo drones, air taxis, and ultimately, passenger-carrying autonomous aircraft will demand unprecedented levels of sophistication and trust in flight software. This includes advanced AI/ML algorithms for decision-making, path planning, and obstacle avoidance.
• Seamless Integration: Flight control will become even more seamlessly integrated with other aircraft systems, including navigation, communication, and health monitoring, leading to a truly interconnected aviation ecosystem.
• Human-Machine Collaboration: The pilot’s role will evolve from direct manipulation to a supervisory and decision-making capacity, requiring sophisticated interfaces and intelligent assistance from the flight control system.
• Quantum Computing and AI: While still nascent, the long-term future might see quantum computing applied to complex flight optimization problems and advanced AI models managing dynamic flight environments.

Conclusion: A Journey of Continuous Innovation

The journey from the rudimentary mechanical linkages of early aircraft to the sophisticated digital fly-by-wire systems of today is a testament to human ingenuity and the relentless pursuit of aviation excellence. This evolution, powered by transformative advancements in flight software and embedded software, has not only made aircraft safer, more efficient, and more capable but has also fundamentally redefined the field of aviation software development.

The modern skies are a direct reflection of this digital revolution, allowing for precision, stability, and envelope protection that were once unimaginable. As we look to the future, the demands for autonomous flight, urban air mobility, and even more integrated systems will continue to push the boundaries of what’s possible, placing even greater emphasis on the innovation and reliability of software.
